RIEGLER Kamlok quick-connect plug, Exterior thread, F type, 1.4401, R 1
Type number: 1116.10-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108132EAN :
4047322404709Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.15 kgRIEGLER Kamlok quick coupling plug with male thread for compressed air supply, max. 16 bar, R 1 - type 1116.10-ES
The RIEGLER Kamlok quick coupling plug with male thread, type F, ES 1.4401, R 1 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 95 °C. Connection thread R 1 - suitable for common industry standards. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | R 1 |
| Plug Ø | 37 mm |
| L | 60 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108134] RIEGLER Kamlok quick-connect plug, ET, F type, 1.4401, R 1 1/2](/web/image/product.template/192032/image_128/%5B108134%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20ET%2C%20F%20type%2C%201.4401%2C%20R%201%201-2?unique=c155a1d)
|
Type number: 1116.112-ES |
18.27 € | |
![[108133] RIEGLER Kamlok quick-connect plug, ET, F type, 1.4401, R 1 1/4](/web/image/product.template/192031/image_128/%5B108133%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20ET%2C%20F%20type%2C%201.4401%2C%20R%201%201-4?unique=c5765cc)
|
Type number: 1116.114-ES |
13.91 € | |

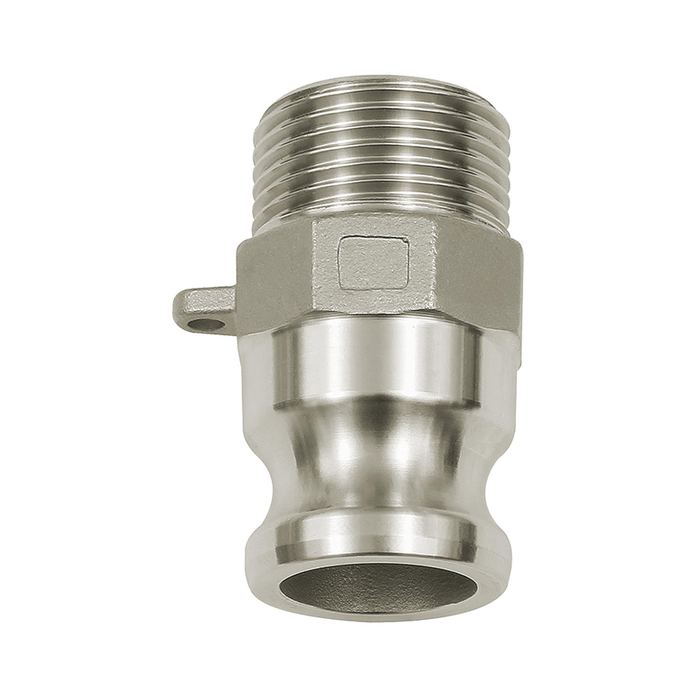

![[108136] RIEGLER Kamlok quick-connect plug, ET, F type, 1.4401, R 2 1/2](/web/image/product.template/192034/image_128/%5B108136%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20ET%2C%20F%20type%2C%201.4401%2C%20R%202%201-2?unique=2fd752f)
|
Type number: 1116.212-ES |
42.26 € | |
![[108135] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, 1.4401, R 2](/web/image/product.template/192033/image_128/%5B108135%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%201.4401%2C%20R%202?unique=5e9e751)
|
Type number: 1116.20-ES |
26.29 € | |
![[108137] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, 1.4401, R 3](/web/image/product.template/192035/image_128/%5B108137%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%201.4401%2C%20R%203?unique=f7f0a83)
|
Type number: 1116.30-ES |
54.41 € | |
![[108131] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, 1.4401, R 3/4](/web/image/product.template/192029/image_128/%5B108131%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%201.4401%2C%20R%203-4?unique=9661ca7)
|
Type number: 1116.34-ES |
7.01 € | |
![[108138] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, 1.4401, R 4](/web/image/product.template/192036/image_128/%5B108138%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%201.4401%2C%20R%204?unique=3f257b1)
|
Type number: 1116.40-ES |
85.54 € | |
