RIEGLER Kamlok quick-connect plug, Exterior thread, F type, 1.4401, R 3
Type number: 1116.30-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
108137EAN :
4047322404778Category :
KAMLOK hose couplings & accessoriesWeight :
0.87 kgKamlok quick coupling plug with external thread, type F, ES 1.4401, R 3, plug Ø 92 mm, PN max. 16 bar, temp. -20 °C to 95 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | R 3 |
| Plug Ø | 92 mm |
| L | 91 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

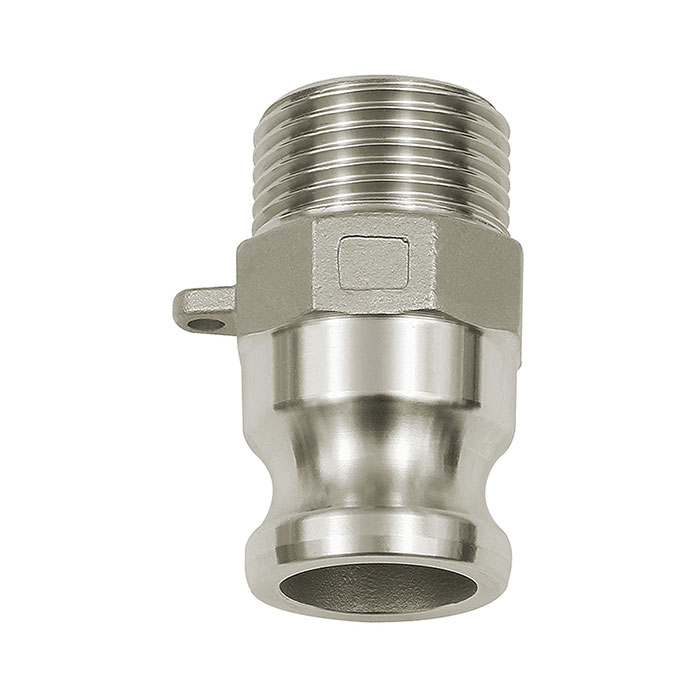

![[108134] RIEGLER Kamlok quick-connect plug, ET, F type, 1.4401, R 1 1/2](/web/image/product.template/192032/image_128/%5B108134%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20ET%2C%20F%20type%2C%201.4401%2C%20R%201%201-2?unique=fa86674)
|
