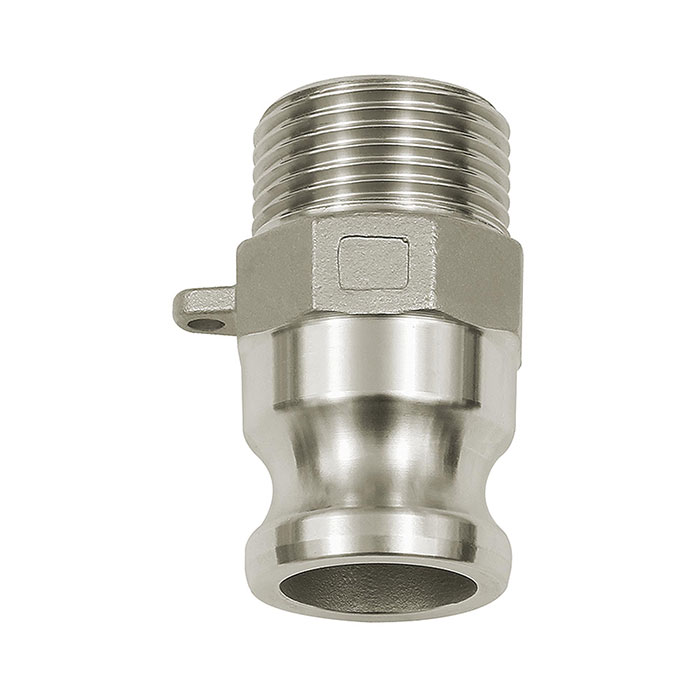

RIEGLER Kamlok quick-connect plug, ET, F type, 1.4401, R 1 1/4
Type number: 1116.114-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
108133EAN :
4047322404716Category :
KAMLOK hose couplings & accessoriesWeight :
0.22 kgKamlok quick coupling plug with male thread, type F, ES 1.4401, R 1 1/4, plug Ø 46 mm, PN max. 16 bar, temp. -20°C to 95°C
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | R 1 1/4 |
| Plug Ø | 46 mm |
| L | 72 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
