RIEGLER Kamlok quick-connect plug, Exterior thread, F type, 1.4401, R 4
Type number: 1116.40-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
108138EAN :
4047322404785Category :
KAMLOK hose couplings & accessoriesWeight :
1.28 kgKamlok quick-connect plug with exterior thread, F type, Stainless steel 1.4401, R 4, Plug Ø 120 mm, Pressure max. 16 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 95 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| Thread | R 4 |
| Plug Ø | 120 mm |
| L | 97 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108134] RIEGLER Kamlok quick-connect plug, ET, F type, 1.4401, R 1 1/2](/web/image/product.template/192032/image_128/%5B108134%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20ET%2C%20F%20type%2C%201.4401%2C%20R%201%201-2?unique=7cdf5a5)
|
Type number: 1116.112-ES |
18.56 € | |

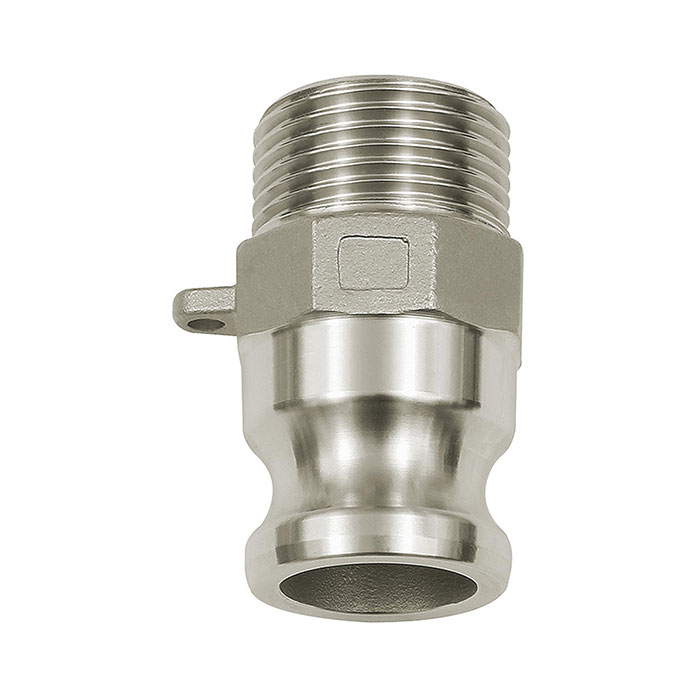

![[108133] RIEGLER Kamlok quick-connect plug, ET, F type, 1.4401, R 1 1/4](/web/image/product.template/192031/image_128/%5B108133%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20ET%2C%20F%20type%2C%201.4401%2C%20R%201%201-4?unique=c2f77b3)
|
Type number: 1116.114-ES |
13.91 € | |
![[108136] RIEGLER Kamlok quick-connect plug, ET, F type, 1.4401, R 2 1/2](/web/image/product.template/192034/image_128/%5B108136%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20ET%2C%20F%20type%2C%201.4401%2C%20R%202%201-2?unique=4aba92f)
|
Type number: 1116.212-ES |
42.26 € | |
![[108132] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, 1.4401, R 1](/web/image/product.template/192030/image_128/%5B108132%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%201.4401%2C%20R%201?unique=fa8fc5d)
|
Type number: 1116.10-ES |
10.17 € | |
![[108135] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, 1.4401, R 2](/web/image/product.template/192033/image_128/%5B108135%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%201.4401%2C%20R%202?unique=97cee92)
|
Type number: 1116.20-ES |
26.30 € | |
![[108137] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, 1.4401, R 3](/web/image/product.template/192035/image_128/%5B108137%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%201.4401%2C%20R%203?unique=4b8195f)
|
Type number: 1116.30-ES |
54.42 € | |
![[108131] RIEGLER Kamlok quick-connect plug, Exterior thread, F type, 1.4401, R 3/4](/web/image/product.template/192029/image_128/%5B108131%5D%20RIEGLER%20Kamlok%20quick-connect%20plug%2C%20Exterior%20thread%2C%20F%20type%2C%201.4401%2C%20R%203-4?unique=0cf1a11)
|
Type number: 1116.34-ES |
7.13 € | |
