RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø5mm
Type number: FG 2505-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bellows suction cups for vacuum technology - type FG 2505-2
The RIEGLER bellows suction cup, round 2.5 folds, material silicone, "FG", Ø 5 mm lifts and transports workpieces safely by vacuum. Suction force 0.1 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 5 mm |
| Suitable connection nipple IG | M5 |
| Suitable connection nipple AG | M5 |
| Overall height with nipple IG | 23.5 mm |
| Overall height with nipple AG | 18.5 mm |
| Suction power | 0.1 N |
| Volume | 0.033 cm³ |
| Workpiece radius convex min. | 8 mm |
| Recommended hose Ø | 2 mm |
| Tear-off force | 0.8 N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108527] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø12mm](/web/image/product.template/192424/image_128/%5B108527%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9812mm?unique=b8a6389)
|
Type number: FG 2512-2 |
5.56 € | |
![[108528] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø14mm](/web/image/product.template/192425/image_128/%5B108528%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9814mm?unique=cfee857)
|
Type number: FG 2514-2 |
5.84 € | |

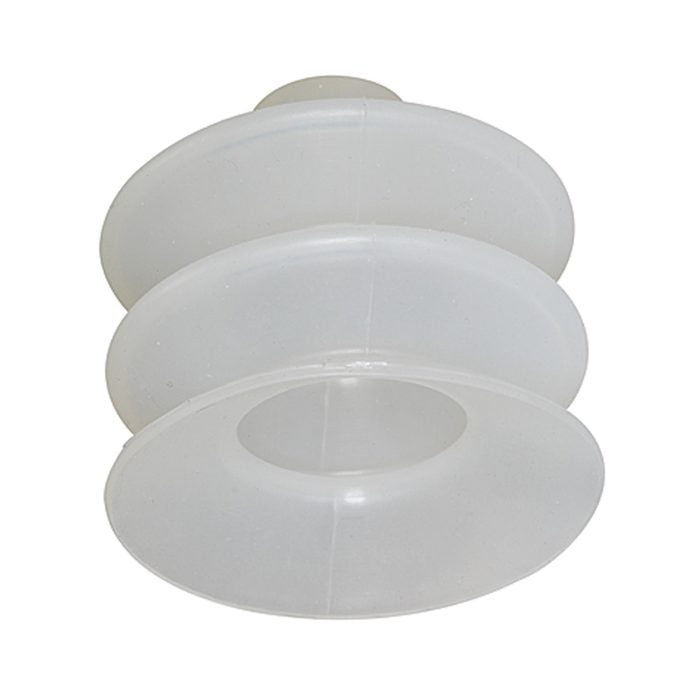

![[108529] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø18mm](/web/image/product.template/192426/image_128/%5B108529%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9818mm?unique=bb5e2fc)
|
Type number: FG 2518-2 |
5.84 € | |
![[108530] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø20mm](/web/image/product.template/192427/image_128/%5B108530%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9820mm?unique=faab315)
|
Type number: FG 2520-2 |
6.06 € | |
![[108531] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø25mm](/web/image/product.template/192428/image_128/%5B108531%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9825mm?unique=1ea34ac)
|
Type number: FG 2525-2 |
8.51 € | |
![[108532] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø32mm](/web/image/product.template/192429/image_128/%5B108532%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9832mm?unique=2508b82)
|
Type number: FG 2532-2 |
8.51 € | |
![[108533] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø42mm](/web/image/product.template/192430/image_128/%5B108533%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9842mm?unique=a4d3f4f)
|
Type number: FG 2542-2 |
9.63 € | |
![[108534] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø52mm](/web/image/product.template/192431/image_128/%5B108534%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9852mm?unique=d5a74fb)
|
Type number: FG 2552-2 |
11.15 € | |
![[108525] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø7mm](/web/image/product.template/192422/image_128/%5B108525%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%987mm?unique=93c666a)
|
Type number: FG 2507-2 |
5.49 € | |
![[108526] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø9mm](/web/image/product.template/192423/image_128/%5B108526%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%989mm?unique=5d9e849)
|
Type number: FG 2509-2 |
5.63 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

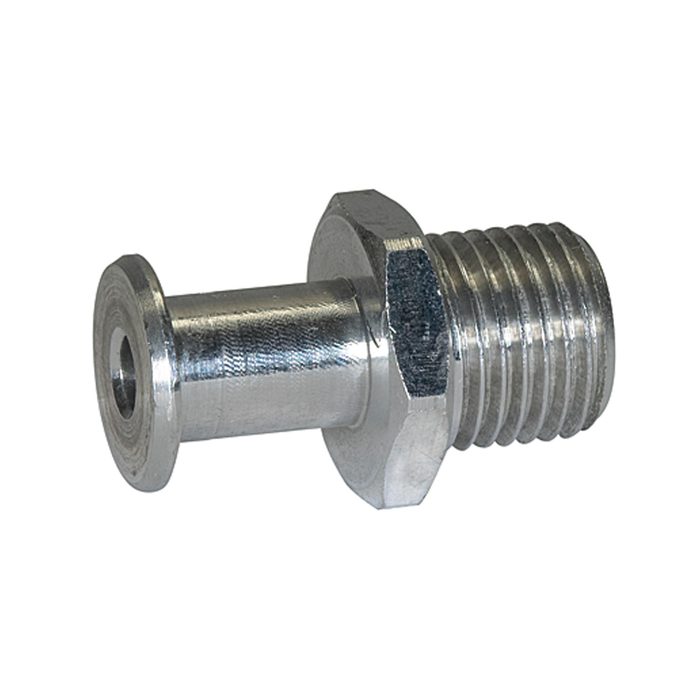

![[108506] RIEGLER Connection nipple for bellows suction cup, round, »FGA« Ø 5](/web/image/product.template/192403/image_128/%5B108506%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB%20%C3%98%205?unique=4182cdc)
|
Type number: 313.004 |
2.95 € | |

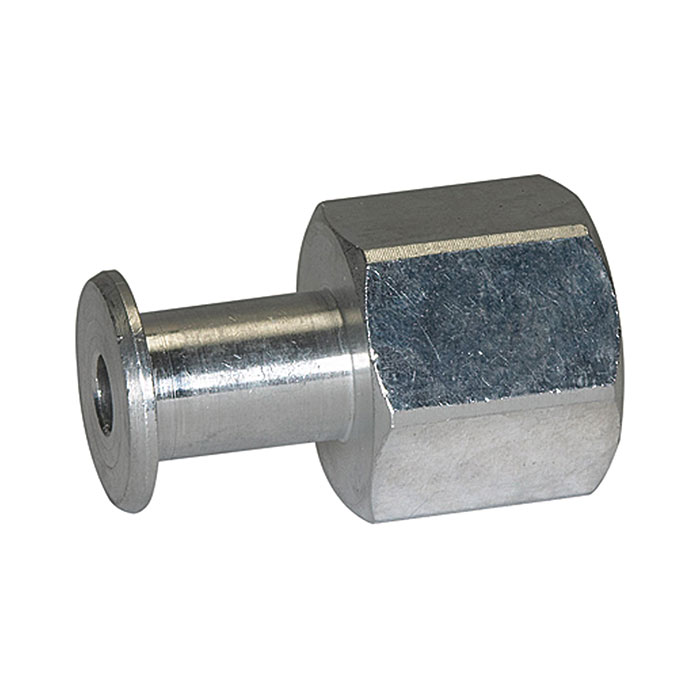

![[108510] RIEGLER Connection nipple for bellows suction cup, round, »FGA«](/web/image/product.template/192407/image_128/%5B108510%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB?unique=184ec47)
|
Type number: 314.004 |
2.95 € | |
