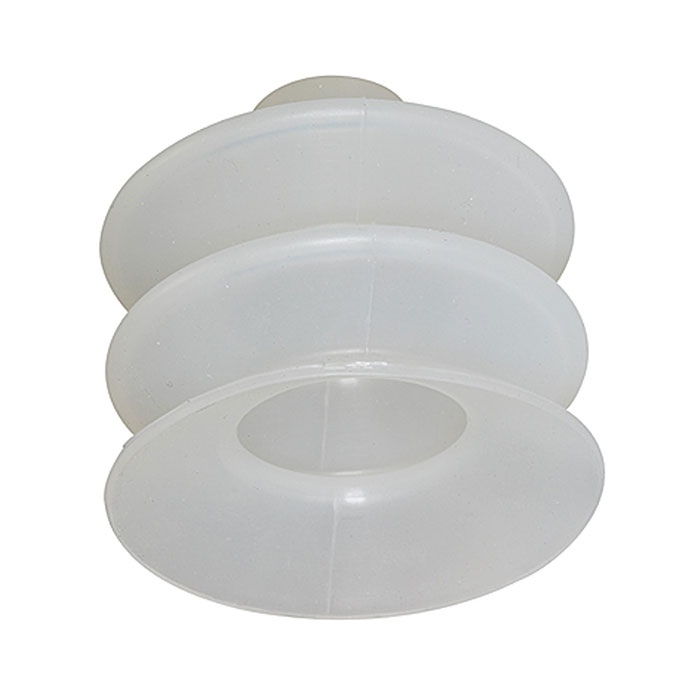

RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø32mm
Type number: FG 2532-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bellows suction cups for vacuum technology - Type FG 2532-2
The RIEGLER bellows suction cup, round 2.5 folds, material silicone, "FG", Ø 32 mm lifts and transports workpieces safely by vacuum. Suction force 12 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 32 mm |
| Suitable connection nipple IG | G 1/4 |
| Suitable connection nipple AG | G 1/4 |
| Overall height with nipple IG | 52.5 mm |
| Overall height with nipple AG | 41.5 mm |
| Suction power | 12 N |
| Volume | 10 cm³ |
| Workpiece radius convex min. | 35 mm |
| Recommended hose Ø | 6 mm |
| Tear-off force | 36.9 N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108527] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø12mm](/web/image/product.template/192424/image_128/%5B108527%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9812mm?unique=235f625)
|
Type number: FG 2512-2 |
5.56 € | |
![[108528] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø14mm](/web/image/product.template/192425/image_128/%5B108528%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9814mm?unique=fd11c40)
|
Type number: FG 2514-2 |
5.84 € | |
![[108529] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø18mm](/web/image/product.template/192426/image_128/%5B108529%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9818mm?unique=6ee1c04)
|
Type number: FG 2518-2 |
5.84 € | |
![[108530] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø20mm](/web/image/product.template/192427/image_128/%5B108530%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9820mm?unique=e6e5dd4)
|
Type number: FG 2520-2 |
6.06 € | |
![[108531] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø25mm](/web/image/product.template/192428/image_128/%5B108531%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9825mm?unique=4ba110b)
|
Type number: FG 2525-2 |
8.51 € | |
![[108533] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø42mm](/web/image/product.template/192430/image_128/%5B108533%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9842mm?unique=c02011b)
|
Type number: FG 2542-2 |
9.63 € | |
![[108534] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø52mm](/web/image/product.template/192431/image_128/%5B108534%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9852mm?unique=09308dc)
|
Type number: FG 2552-2 |
11.15 € | |
![[108524] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø5mm](/web/image/product.template/192421/image_128/%5B108524%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%985mm?unique=8333944)
|
Type number: FG 2505-2 |
5.49 € | |
![[108525] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø7mm](/web/image/product.template/192422/image_128/%5B108525%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%987mm?unique=e15e0eb)
|
Type number: FG 2507-2 |
5.49 € | |
![[108526] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø9mm](/web/image/product.template/192423/image_128/%5B108526%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%989mm?unique=779b7f6)
|
Type number: FG 2509-2 |
5.63 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

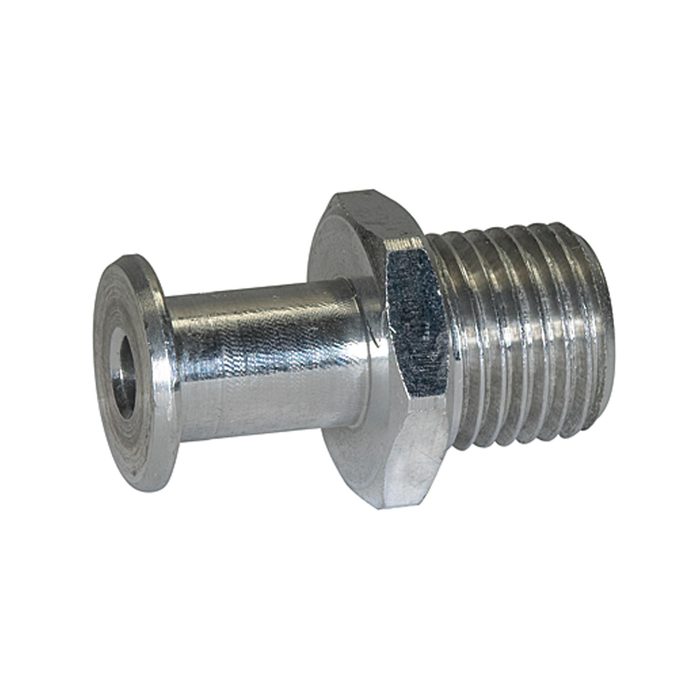

![[108509] RIEGLER Connection nipple for bellows suction cup, round, »FGA« Ø32-52](/web/image/product.template/192406/image_128/%5B108509%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB%20%C3%9832-52?unique=def815d)
|
Type number: 313.014 |
5.20 € | |

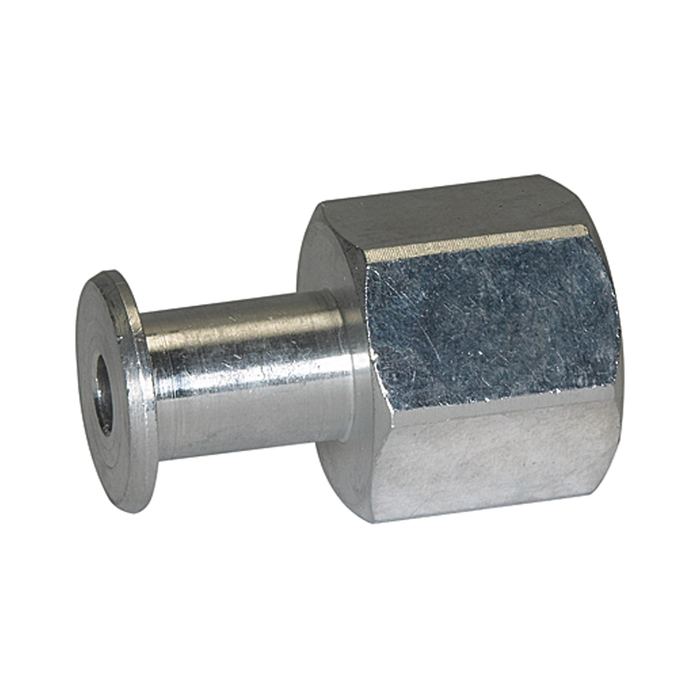

![[108512] RIEGLER Connection nipple for bellows suction cup, round, »FGA«](/web/image/product.template/192409/image_128/%5B108512%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB?unique=2d95041)
|
Type number: 314.014 |
5.20 € | |
