RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø25mm
Type number: FG 2525-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bellows suction cups for vacuum technology - Type FG 2525-2
The RIEGLER bellows suction cup, round 2.5 folds, material silicone, "FG", Ø 25 mm lifts and transports workpieces safely by vacuum. Suction force 4.5 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 25 mm |
| Suitable connection nipple IG | G 1/8 |
| Suitable connection nipple AG | G 1/8 |
| Overall height with nipple IG | 46.0 mm |
| Overall height with nipple AG | 40.0 mm |
| Suction power | 4.5 N |
| Volume | 5.4 cm³ |
| Workpiece radius convex min. | 30 mm |
| Recommended hose Ø | 4 mm |
| Tear-off force | 19 N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108527] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø12mm](/web/image/product.template/192424/image_128/%5B108527%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9812mm?unique=235f625)
|
Type number: FG 2512-2 |
5.56 € | |
![[108528] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø14mm](/web/image/product.template/192425/image_128/%5B108528%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9814mm?unique=fd11c40)
|
Type number: FG 2514-2 |
5.84 € | |
![[108529] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø18mm](/web/image/product.template/192426/image_128/%5B108529%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9818mm?unique=6ee1c04)
|
Type number: FG 2518-2 |
5.84 € | |
![[108530] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø20mm](/web/image/product.template/192427/image_128/%5B108530%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9820mm?unique=e6e5dd4)
|
Type number: FG 2520-2 |
6.06 € | |
![[108532] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø32mm](/web/image/product.template/192429/image_128/%5B108532%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9832mm?unique=41d175b)
|
Type number: FG 2532-2 |
8.51 € | |

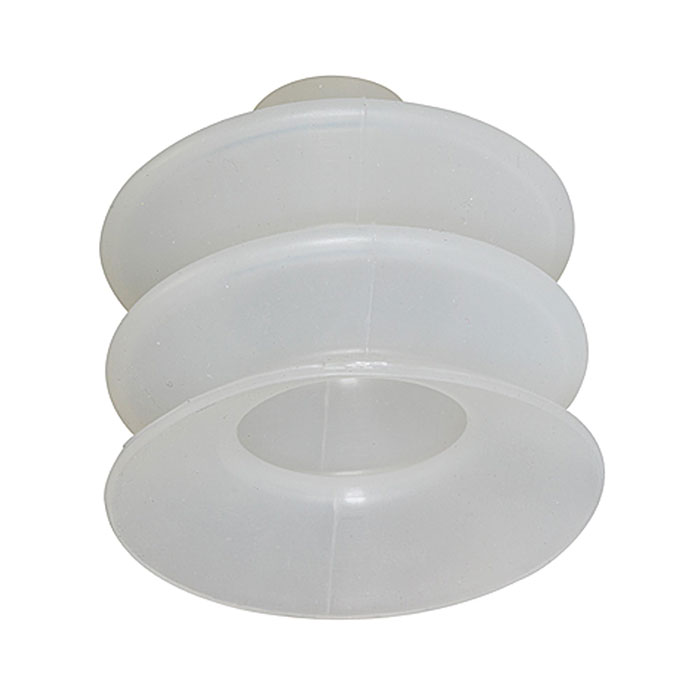

![[108533] RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø42mm](/web/image/product.template/192430/image_128/%5B108533%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Silicone%20material%2C%20FG%20%C3%9842mm?unique=c02011b)
|
