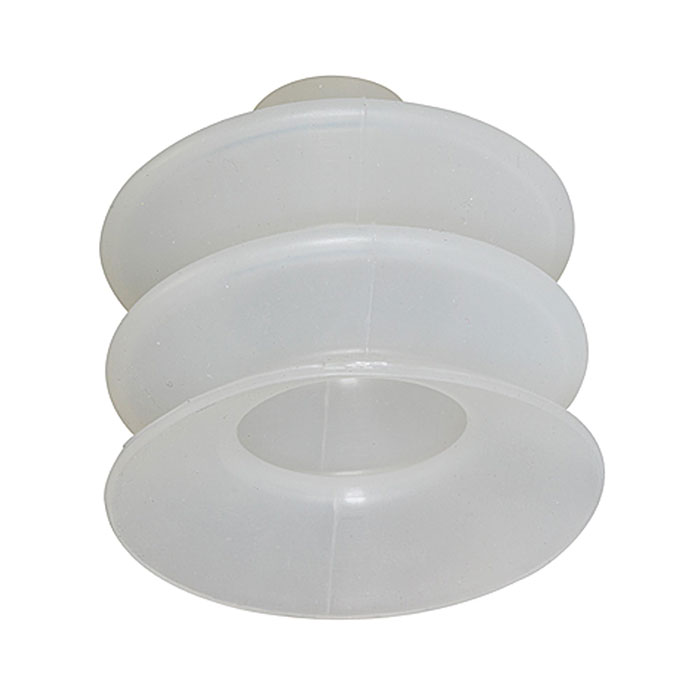

RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø52mm
Type number: FG 2552-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bellows suction cups for vacuum technology - Type FG 2552-2
The RIEGLER bellows suction cup, round 2.5 folds, material silicone, "FG", Ø 52 mm lifts and transports workpieces safely by vacuum. Suction force 27 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 52 mm |
| Suitable connection nipple IG | G 1/4 |
| Suitable connection nipple AG | G 1/4 |
| Overall height with nipple IG | 64.0 mm |
| Overall height with nipple AG | 53.0 mm |
| Suction power | 27 N |
| Volume | 62 cm³ |
| Workpiece radius convex min. | 75 mm |
| Recommended hose Ø | 6 mm |
| Tear-off force | 96 N |
