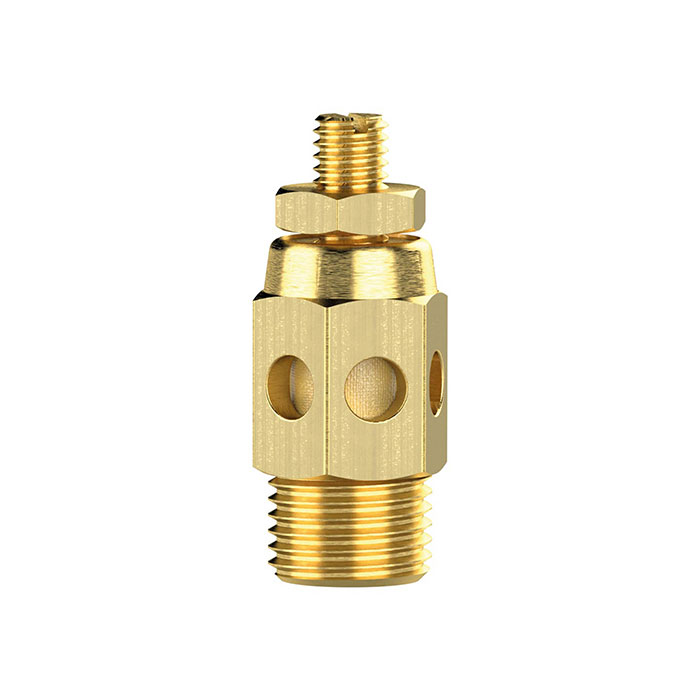

RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 1/8
Typennummer: SD18MSEB
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Silencer, sintered bronze, sintered silencer oil, MS housing, adjustable, G1/8, operating pressure 0-15 bar, operating temp. -10°C-250°C
| Max. operating pressure | 15 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Thread | G 1/8 |

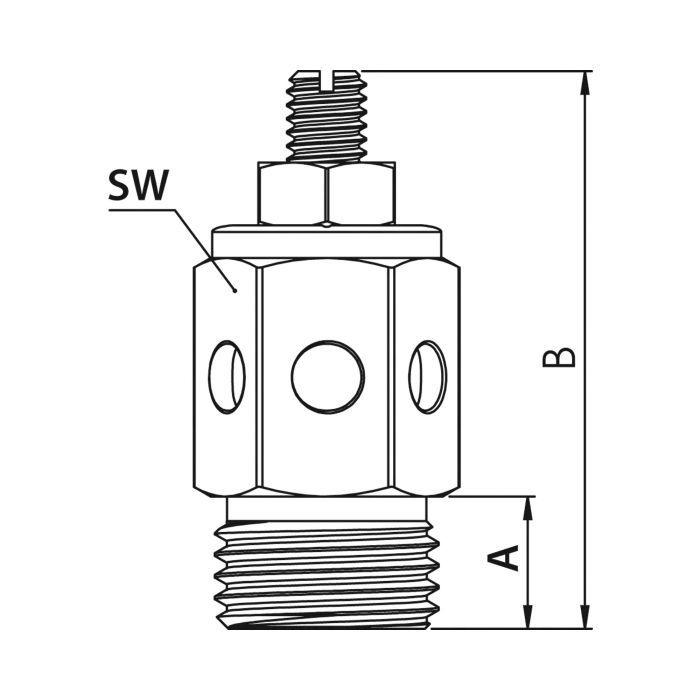

| SW | 13 mm |
| A | 6.5 mm |
| B | 29 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[156518] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 1](/web/image/product.template/213313/image_128/%5B156518%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%201?unique=93b2932)
|
Typennummer: SD1MSEB |
27.41 € | |
![[156516] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 1/2](/web/image/product.template/213311/image_128/%5B156516%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%201-2?unique=5eb1c50)
|
Typennummer: SD12MSEB |
12.79 € | |
![[156514] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 1/4](/web/image/product.template/213309/image_128/%5B156514%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%201-4?unique=5d59ea5)
|
Typennummer: SD14MSEB |
5.43 € | |
![[156517] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 3/4,](/web/image/product.template/213312/image_128/%5B156517%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%203-4%2C?unique=e85e6d6)
|
Typennummer: SD34MSEB |
16.62 € | |
![[156515] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 3/8](/web/image/product.template/213310/image_128/%5B156515%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%203-8?unique=d53a02f)
|
Typennummer: SD38MSEB |
7.89 € | |
