RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 1/2
Typennummer: SD12MSEB
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

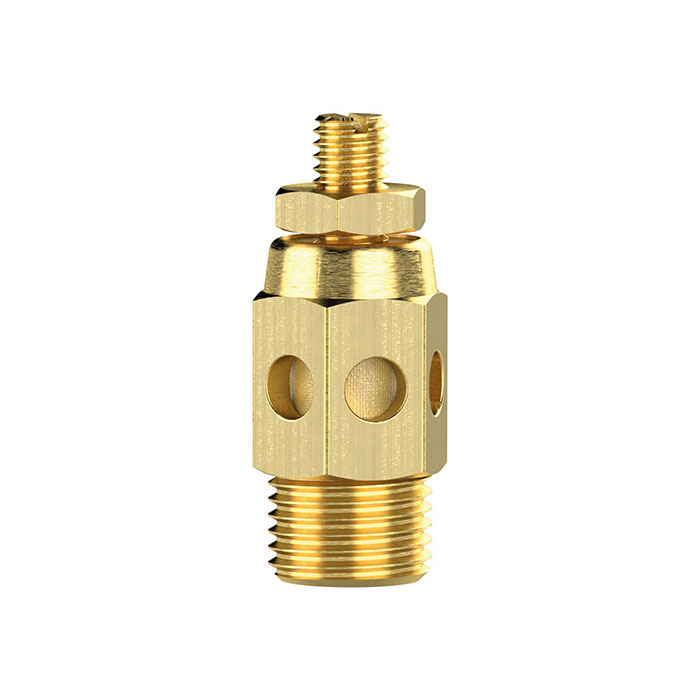

RIEGLER Silencer for noise protection, max. 15 bar, G 1/2 - type SD12MSEB
The RIEGLER silencer, sintered bronze, brass housing, adjustable, G1/2 significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 15 bar. The operating temperature is between -10 °C and 250 °C. G 1/2 connection thread - suitable for common industry standards. Significant noise reduction for improved occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 15 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Thread | G 1/2 |

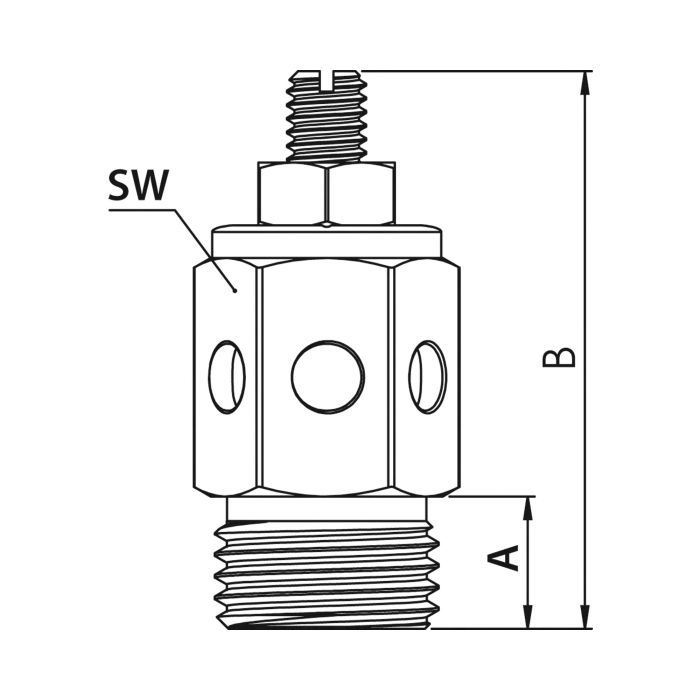

| SW | 22 mm |
| A | 10.5 mm |
| B | 44 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[156518] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 1](/web/image/product.template/213313/image_128/%5B156518%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%201?unique=8bce77d)
|
Typennummer: SD1MSEB |
27.41 € | |
![[156514] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 1/4](/web/image/product.template/213309/image_128/%5B156514%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%201-4?unique=5078aca)
|
Typennummer: SD14MSEB |
5.43 € | |
![[156513] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 1/8](/web/image/product.template/213308/image_128/%5B156513%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%201-8?unique=01c7003)
|
Typennummer: SD18MSEB |
3.95 € | |
![[156517] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 3/4,](/web/image/product.template/213312/image_128/%5B156517%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%203-4%2C?unique=c1a1cb1)
|
Typennummer: SD34MSEB |
16.62 € | |
![[156515] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 3/8](/web/image/product.template/213310/image_128/%5B156515%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%203-8?unique=b276f93)
|
Typennummer: SD38MSEB |
7.89 € | |
