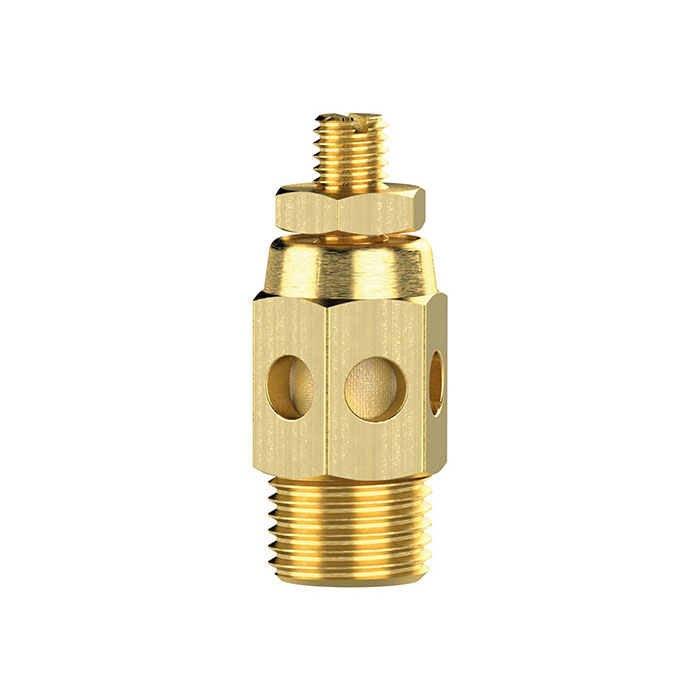

RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 3/4,
Typennummer: SD34MSEB
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Silencer for noise protection, max. 15 bar, G 3/4 - type SD34MSEB
The RIEGLER silencer, sintered bronze, brass housing, adjustable, G3/4 significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 15 bar. The operating temperature is between -10 °C and 250 °C. Connection thread G 3/4 - suitable for common industry standards. Significant noise reduction for improved occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 15 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Thread | G 3/4 |

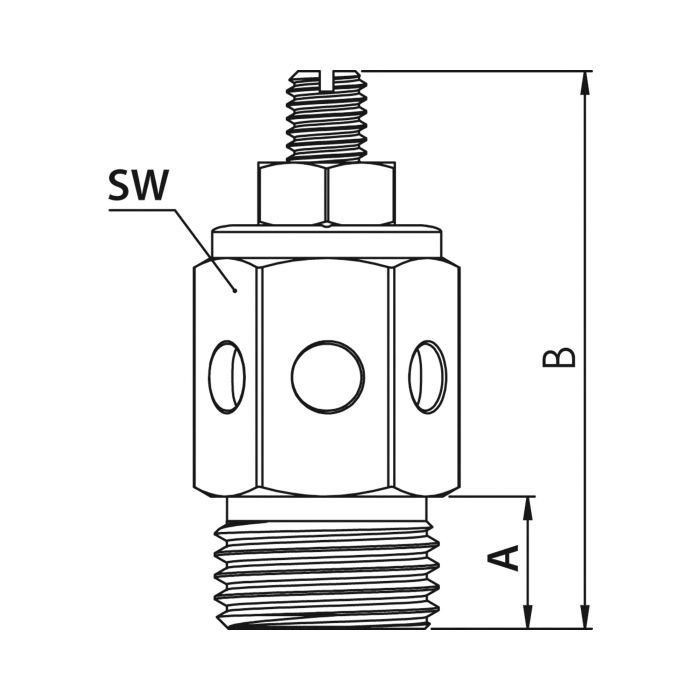

| SW | 27 mm |
| A | 13.5 mm |
| B | 55 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[156518] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 1](/web/image/product.template/213313/image_128/%5B156518%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%201?unique=8bce77d)
|
Typennummer: SD1MSEB |
27.41 € | |
![[156516] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 1/2](/web/image/product.template/213311/image_128/%5B156516%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%201-2?unique=e6412a3)
|
Typennummer: SD12MSEB |
12.79 € | |
![[156514] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 1/4](/web/image/product.template/213309/image_128/%5B156514%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%201-4?unique=5078aca)
|
Typennummer: SD14MSEB |
5.43 € | |
![[156513] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 1/8](/web/image/product.template/213308/image_128/%5B156513%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%201-8?unique=01c7003)
|
Typennummer: SD18MSEB |
3.95 € | |
![[156515] RIEGLER Silencer, Sintered bronze, brass housing, adjustable, G 3/8](/web/image/product.template/213310/image_128/%5B156515%5D%20RIEGLER%20Silencer%2C%20Sintered%20bronze%2C%20brass%20housing%2C%20adjustable%2C%20G%203-8?unique=b276f93)
|
Typennummer: SD38MSEB |
7.89 € | |
