KAESER SM 13-8 SC3 screw compressor

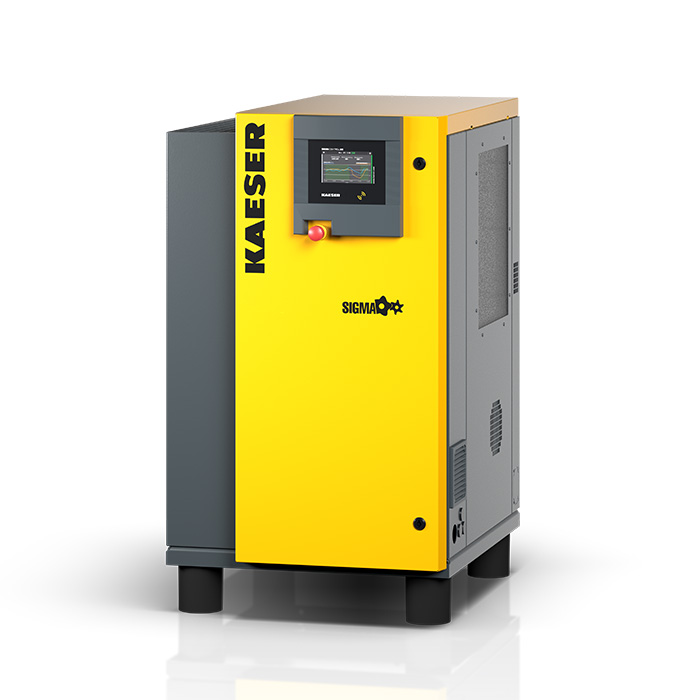

KAESER SM 13-8 Screw Compressor – 7.5 kW at max. 8 bar

The KAESER SM 13-8 is an oil-lubricated screw compressor with a drive power of 7.5 kW and a maximum operating pressure of 8 bar. At rated pressure, it delivers a flow rate of 1.32 m³/min—designed for continuous operation in production and manufacturing. With its robust design and powerful drive, the SM is suitable for continuous use in manufacturing facilities. The 7.5 kW drive motor meets the high efficiency class IE4, thereby significantly reducing energy consumption during continuous operation.

The compressor block uses the proven KAESER SIGMA PROFILE rotor pair to deliver optimized air flow with low energy consumption. The SIGMA CONTROL 3 M control system, featuring a 5-inch color touchscreen and an integrated ANYbus interface, monitors all operating parameters and enables integration into higher-level control systems. The IE4 drive motor operates at 400 V / 3-phase / 50 Hz. The sound pressure level is 65 dB(A). The dimensions are 630 × 790 × 1100 mm (W × D × H) with a weight of 240 kg.

If an integrated refrigerated dryer is also required, KAESER offers the SM 13-8 T model from the “With Refrigerated Dryer” series, which has a pressure dew point of +3 °C.
