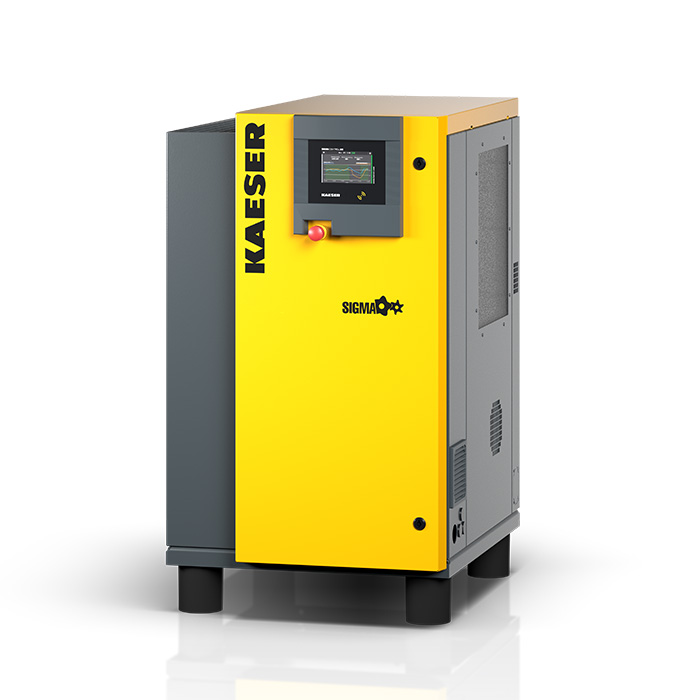

KAESER SM 16-11 SC3 screw compressor
Screw compressor with SIGMA PROFILE. 1.36 m³/min | max. 11 bar | 9 kW (IE3) | 66 dB(A) | SIGMA CONTROL 3 M
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
KAESER SM 16-11 Screw Compressor – 9 kW at max. 11 bar
The KAESER SM 16-11 is an oil-lubricated screw compressor with a drive power of 9 kW and a maximum operating pressure of 11 bar. At rated pressure, it delivers a flow rate of 1.36 m³/min—designed for continuous operation in production and manufacturing. With its robust construction and powerful drive, the SM is suitable for continuous use in manufacturing facilities.
The compressor block uses the proven KAESER SIGMA PROFILE rotor pair to deliver optimized air flow with low energy consumption. The SIGMA CONTROL 3 M controller, featuring a 5-inch color touchscreen and an integrated ANYbus interface, monitors all operating parameters and enables integration into higher-level control systems. The IE3 drive motor operates at 400 V / 3-phase / 50 Hz. The sound pressure level is 66 dB(A). The dimensions are 630 × 790 × 1100 mm (W × D × H) with a weight of 240 kg.
If an integrated refrigerated dryer is also required, KAESER offers the SM 16-11 T model from the “With Refrigerated Dryer” series, which has a pressure dew point of +3 °C.
| Volume flow at overpressure (m³/min) | 1,36 |
| Max. Overpressure (bar) | 11 |
| Rated power drive motor (kW) | 9 |
| Drive motor efficiency class | IE3 |
| Permissible pressure loss cooling channel (Pa) | 20 |
| Max. usable warm air volume (m³/h) | 2100 |
| Max. usable heat output "warm air" (kW) | 11,1 |
| Max. usable heat output "warm water" (kW) | 7,6 |
| Required supply air opening (m2) | 0,3 |
| Drive motor protection class | IP55 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 21 A |
| Fuse: Max current | 25 A |
| Cooling fluid filling quantity (litres) | 4 |
| Width (mm) | 630 |
| Depth (mm) | 790 |
| Height (mm) | 1100 |
| Weight (kg) | 240 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 66 |
| Model range - Screw compressors | SM | 5.5 - 9 kW | Industry |
| Volume flow at overpressure (m³/min) | 1,36 |
| Max. Overpressure (bar) | 11 |
| Rated power drive motor (kW) | 9 |
| Drive motor efficiency class | IE 3 |
| Electrical supply | 400V / 3 / 50Hz |
| Drive motor protection class | IP 55 |
| Sound pressure level (dbA) | 66 |
| Max. usable warm air volume (m³/h) | 2100 |
| Compressed air connection | G 3/4 |
| Cooling fluid filling quantity (litres) | 4 |
| Width (mm) | 630 |
| Depth (mm) | 790 |
| Height (mm) | 1100 |
| Weight (kg) | 240 |
| Full load current | 21 A |
| Fuse: Max current | 25 A |
| Drive Motor Efficiency (%) | 91,9 |
| Drive Motor Speed (rpm) | 2950 |
| Electrical Power Consumption (kW) | 11,4 |
| Compressed Air Outlet Temperature via UT (K) | 7 |
| Coolant Type | SIGMA FLUID MOL |
| Ambient Temperature (Max./Min.) | 45 °C / 3 °C |
