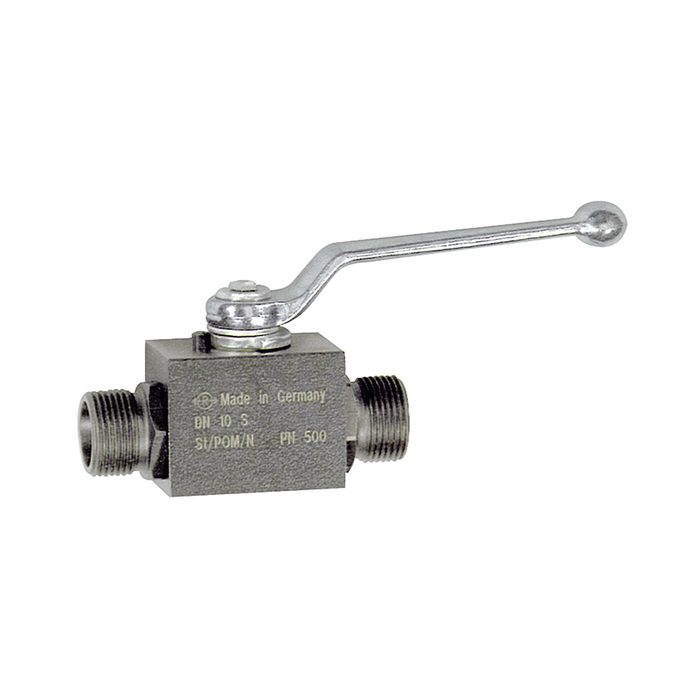

RIEGLER Ball valve, High pressure design, Heavy-duty series, M16x1.5
Type number: 392.11
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Ball valve, high-pressure version, heavy-duty series, steel, operating temperature -10 °C to 100 °C, M16x1.5, DN 4, PN max. 500 bar
| Housing | Steel |
| Max. operating pressure | 500 bar |
| Ball | Hard chrome-plated steel |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Shift shaft | Steel |
| Switching ball seal | POM |
| Shift shaft seal | NBR |
| Thread | M16x1.5 |
| DN | 4 |
| A | 76 mm |
| B | 55 mm |
| L | 73 mm |
| for pipe outer Ø | 8S mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103507] RIEGLER Ball valve, High pressure design, Heavy-duty series, M18x1.5](/web/image/product.template/171469/image_128/%5B103507%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M18x1.5?unique=896793b)
|
Type number: 392.12 |
26.45 € | |
![[103508] RIEGLER Ball valve, High pressure design, Heavy-duty series, M20x1.5](/web/image/product.template/171470/image_128/%5B103508%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M20x1.5?unique=a65d420)
|
Type number: 392.13 |
27.27 € | |
![[103509] RIEGLER Ball valve, High pressure design, Heavy-duty series, M22x1.5](/web/image/product.template/171471/image_128/%5B103509%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M22x1.5?unique=c6945f5)
|
Type number: 392.14 |
28.74 € | |
![[103510] RIEGLER Ball valve, High pressure design, Heavy-duty series, M24x1.5](/web/image/product.template/171472/image_128/%5B103510%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M24x1.5?unique=30d5ff5)
|
Type number: 392.15 |
31.62 € | |
![[103511] RIEGLER Ball valve, High pressure design, Heavy-duty series, M30x2](/web/image/product.template/171473/image_128/%5B103511%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M30x2?unique=e492a7c)
|
Type number: 392.16 |
51.31 € | |
![[103512] RIEGLER Ball valve, High pressure design, Heavy-duty series, M36x2](/web/image/product.template/171474/image_128/%5B103512%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M36x2?unique=877d1dc)
|
Type number: 392.17 |
59.64 € | |
![[103513] RIEGLER Ball valve, High pressure design, Heavy-duty series, M42x2](/web/image/product.template/171475/image_128/%5B103513%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M42x2?unique=7892697)
|
Type number: 392.18 |
77.02 € | |
