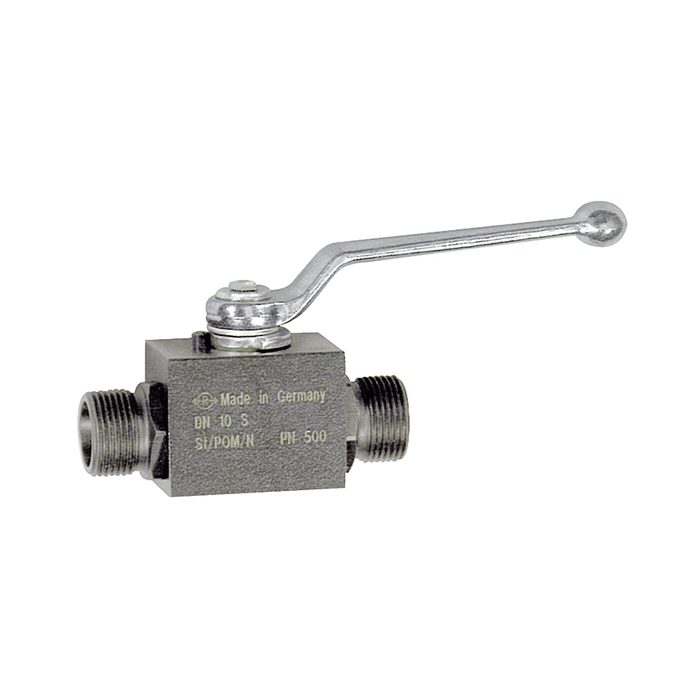

RIEGLER Ball valve, High pressure design, Heavy-duty series, M42x2
Type number: 392.18
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Steel ball valve, for industrial systems, max. 420 bar - Type 392.18
The RIEGLER ball valve, high-pressure version, heavy-duty series, steel, M42x2 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of steel. Designed for a maximum operating pressure of 420 bar. The operating temperature is between -10 °C and 100 °C. M42x2 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Steel |
| Max. operating pressure | 420 bar |
| Ball | Hard chrome-plated steel |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Shift shaft | Steel |
| Switching ball seal | POM |
| Shift shaft seal | NBR |
| Thread | M42x2 |
| DN | 25 |
| A | 187 mm |
| B | 128 mm |
| L | 120 mm |
| for pipe outer Ø | 30S mm |
| Class name | FLEX |
