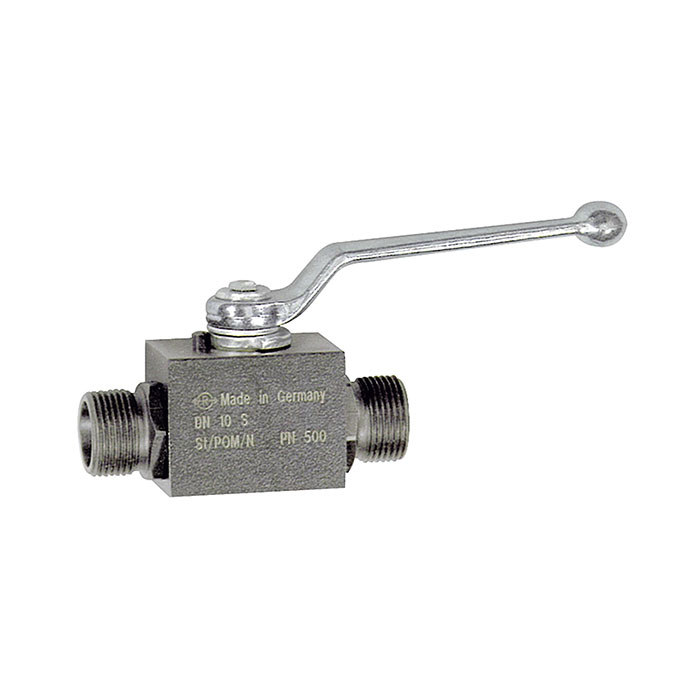

RIEGLER Ball valve, High pressure design, Heavy-duty series, M24x1.5
Type number: 392.15
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Steel ball valve, for industrial systems, max. 500 bar - Type 392.15
The RIEGLER ball valve, high-pressure version, heavy-duty series, steel, M24x1.5 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of steel. Designed for a maximum operating pressure of 500 bar. The operating temperature is between -10 °C and 100 °C. M24x1.5 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Steel |
| Max. operating pressure | 500 bar |
| Ball | Hard chrome-plated steel |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Shift shaft | Steel |
| Switching ball seal | POM |
| Shift shaft seal | NBR |
| Thread | M24x1.5 |
| DN | 12 |
| A | 112 mm |
| B | 92 mm |
| L | 87 mm |
| for pipe outer Ø | 16S mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103506] RIEGLER Ball valve, High pressure design, Heavy-duty series, M16x1.5](/web/image/product.template/171468/image_128/%5B103506%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M16x1.5?unique=4ce0032)
|
Type number: 392.11 |
24.99 € | |

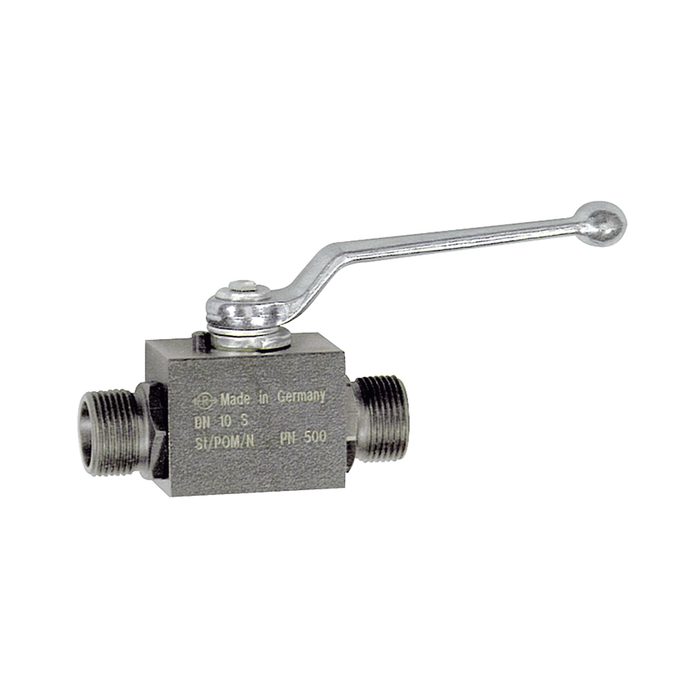

![[103507] RIEGLER Ball valve, High pressure design, Heavy-duty series, M18x1.5](/web/image/product.template/171469/image_128/%5B103507%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M18x1.5?unique=0f4b111)
|
