RIEGLER Ball valve, High pressure design, Heavy-duty series, M18x1.5
Type number: 392.12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Steel ball valve, for industrial systems, max. 500 bar - Type 392.12
The RIEGLER ball valve, high-pressure version, heavy-duty series, steel, M18x1.5 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of steel. Designed for a maximum operating pressure of 500 bar. The operating temperature is between -10 °C and 100 °C. Connection thread M18x1.5 - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Steel |
| Max. operating pressure | 500 bar |
| Ball | Hard chrome-plated steel |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Shift shaft | Steel |
| Switching ball seal | POM |
| Shift shaft seal | NBR |
| Thread | M18x1.5 |
| DN | 6 |
| A | 76 mm |
| B | 55 mm |
| L | 73 mm |
| for pipe outer Ø | 10S mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103506] RIEGLER Ball valve, High pressure design, Heavy-duty series, M16x1.5](/web/image/product.template/171468/image_128/%5B103506%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M16x1.5?unique=4ce0032)
|
Type number: 392.11 |
24.99 € | |
![[103508] RIEGLER Ball valve, High pressure design, Heavy-duty series, M20x1.5](/web/image/product.template/171470/image_128/%5B103508%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M20x1.5?unique=c5e7594)
|
Type number: 392.13 |
27.27 € | |
![[103509] RIEGLER Ball valve, High pressure design, Heavy-duty series, M22x1.5](/web/image/product.template/171471/image_128/%5B103509%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M22x1.5?unique=e4f6a9a)
|
Type number: 392.14 |
28.74 € | |

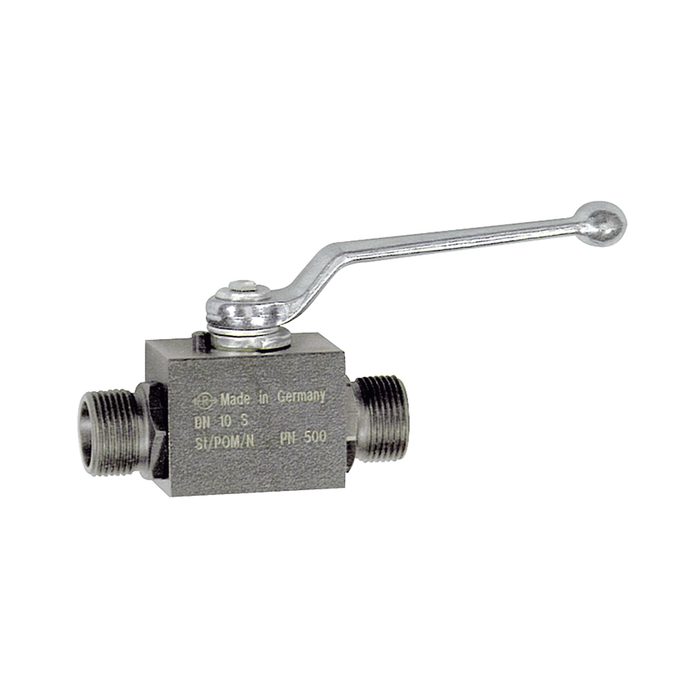

![[103510] RIEGLER Ball valve, High pressure design, Heavy-duty series, M24x1.5](/web/image/product.template/171472/image_128/%5B103510%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M24x1.5?unique=b0c35c9)
|
