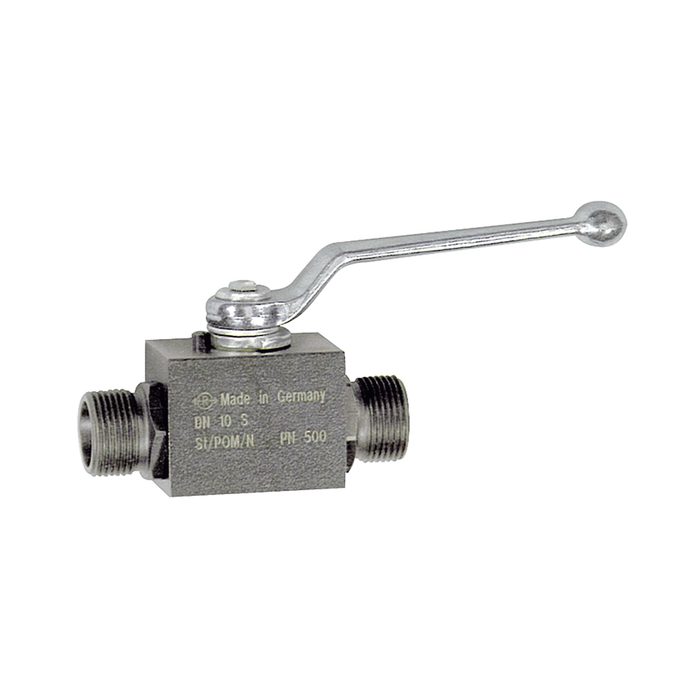

RIEGLER Ball valve, High pressure design, Heavy-duty series, M20x1.5
Type number: 392.13
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve, High pressure design, Heavy-duty series, Steel, Operating temp. -10 °C to 100 °C, M20x1.5, DN 8, PN max. 500 bar
| Housing | Steel |
| Max. operating pressure | 500 bar |
| Ball | Hard chrome-plated steel |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Shift shaft | Steel |
| Switching ball seal | POM |
| Shift shaft seal | NBR |
| Thread | M20x1.5 |
| DN | 8 |
| A | 100 mm |
| B | 68 mm |
| L | 77 mm |
| for pipe outer Ø | 12S mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103506] RIEGLER Ball valve, High pressure design, Heavy-duty series, M16x1.5](/web/image/product.template/171468/image_128/%5B103506%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M16x1.5?unique=ad9cb7d)
|
Type number: 392.11 |
25.34 € | |
![[103507] RIEGLER Ball valve, High pressure design, Heavy-duty series, M18x1.5](/web/image/product.template/171469/image_128/%5B103507%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M18x1.5?unique=fc2922d)
|
Type number: 392.12 |
26.82 € | |
![[103509] RIEGLER Ball valve, High pressure design, Heavy-duty series, M22x1.5](/web/image/product.template/171471/image_128/%5B103509%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M22x1.5?unique=b5c156b)
|
Type number: 392.14 |
28.74 € | |
![[103510] RIEGLER Ball valve, High pressure design, Heavy-duty series, M24x1.5](/web/image/product.template/171472/image_128/%5B103510%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M24x1.5?unique=4a356af)
|
Type number: 392.15 |
32.06 € | |
![[103511] RIEGLER Ball valve, High pressure design, Heavy-duty series, M30x2](/web/image/product.template/171473/image_128/%5B103511%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M30x2?unique=1e55e31)
|
Type number: 392.16 |
52.01 € | |
![[103512] RIEGLER Ball valve, High pressure design, Heavy-duty series, M36x2](/web/image/product.template/171474/image_128/%5B103512%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M36x2?unique=7ba5acb)
|
Type number: 392.17 |
60.48 € | |
![[103513] RIEGLER Ball valve, High pressure design, Heavy-duty series, M42x2](/web/image/product.template/171475/image_128/%5B103513%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20Heavy-duty%20series%2C%20M42x2?unique=143bccb)
|
Type number: 392.18 |
78.08 € | |
