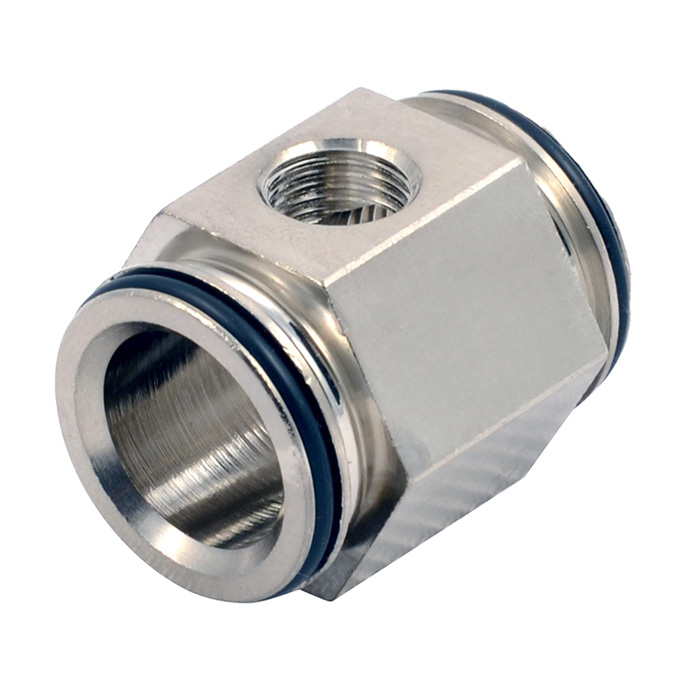

RIEGLER Air tapping 2-way "SYNTESI", BG 1, G 3/8, outlets 2 x G 1/8
Type number: 5610P100
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Air tapping 2-way "SYNTESI" made of nickel-plated brass, for compressed air treatment - type 5610P100
The RIEGLER 2-way "SYNTESI" air sampling unit, BG 1, G 3/8, outlets 2 x G 1/8 expands maintenance systems modularly with additional functions. The housing is made of nickel-plated brass. The maximum inlet pressure is 15 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Nickel-plated brass |
| Departure | 2 x G 1/8 |
| BG | 1 |
| Input connection | Syntesi connection nipple |
| Output connection | |
| A | 15.5 mm |
| Class name | PLUS |
| Flow rate measurement | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Syntesi |
| Flow 1 | 1550 l/min |
