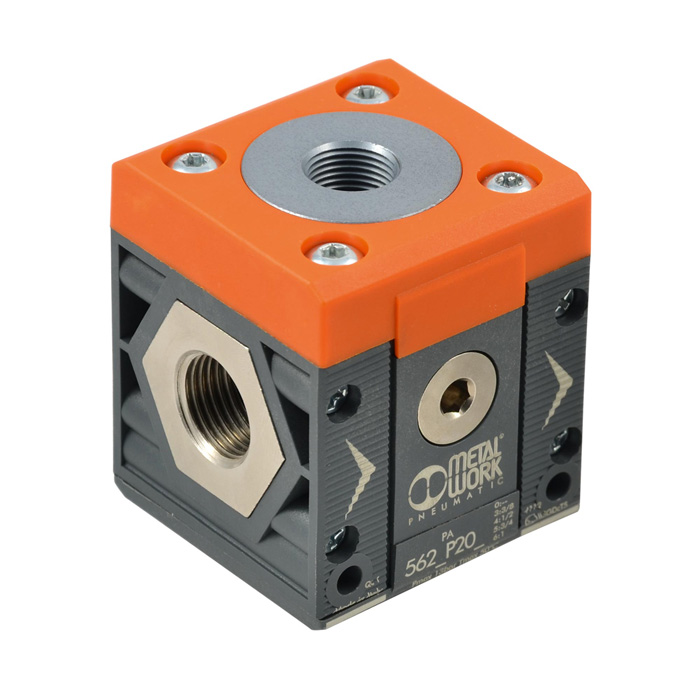

RIEGLER Air tapping 4-way "SYNTESI", BG1, G 3/8, outlet 1x G 1/4, 3x G 1/8
Type number: 5613P203
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 4-way "SYNTESI" air tapping made of technopolymer, for compressed air treatment - type 5613P203
The RIEGLER 4-way "SYNTESI" air sampling unit, BG1, G 3/8, outlet 1x G 1/4, 3x G 1/8 expands maintenance systems modularly with additional functions. The housing is made of technopolymer. The maximum inlet pressure is 15 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Departure | 1 x G 1/4, 3 x G 1/8 |
| BG | 1 |
| Input connection | G 3/8 |
| Output connection | |
| A | 42 mm |
| B | 58 mm |
| Class name | PLUS |
| A1 | 44.0 mm |
| Flow rate measurement | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Syntesi |
| Flow 1 | 500 - 2000 l/min |
| F | 32.2 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144891] RIEGLER Air tapping 2-way "SYNTESI", BG 1, G 3/8, outlets 2 x G 1/8](/web/image/product.template/280014/image_128/%5B144891%5D%20RIEGLER%20Air%20tapping%202-way%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%20outlets%202%20x%20G%201-8?unique=84df478)
|
Type number: 5610P100 |
8.22 € | |
![[144892] RIEGLER Air tapping 2-way "SYNTESI", BG 2, G 1/2, outlets 2 x G 3/8](/web/image/product.template/280015/image_128/%5B144892%5D%20RIEGLER%20Air%20tapping%202-way%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%20outlets%202%20x%20G%203-8?unique=0c02b48)
|
Type number: 5620P100 |
22.91 € | |
![[144895] RIEGLER Air tapping 4-way "SYNTESI", BG1, G 1/4, outlet 1x G 1/4, 3x G 1/8](/web/image/product.template/280018/image_128/%5B144895%5D%20RIEGLER%20Air%20tapping%204-way%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%20outlet%201x%20G%201-4%2C%203x%20G%201-8?unique=4d14d48)
|
Type number: 5612P202 |
33.74 € | |
![[144894] RIEGLER Air tapping 4-way "SYNTESI", BG1, G 1/8, outlet 1x G 1/4, 3x G 1/8](/web/image/product.template/280017/image_128/%5B144894%5D%20RIEGLER%20Air%20tapping%204-way%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%20outlet%201x%20G%201-4%2C%203x%20G%201-8?unique=f564a9b)
|
Type number: 5611P201 |
33.74 € | |
![[144899] RIEGLER Air tapping 4-way "SYNTESI", BG2, G 1/2, outlet 1x G 3/8, 3x G 1/4](/web/image/product.template/280022/image_128/%5B144899%5D%20RIEGLER%20Air%20tapping%204-way%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%20outlet%201x%20G%203-8%2C%203x%20G%201-4?unique=1a24a7a)
|
Type number: 5624P204 |
62.20 € | |
![[144901] RIEGLER Air tapping 4-way "SYNTESI", BG2, G 1, outlet 1 x G 3/8, 3 x G 1/4](/web/image/product.template/280024/image_128/%5B144901%5D%20RIEGLER%20Air%20tapping%204-way%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%20outlet%201%20x%20G%203-8%2C%203%20x%20G%201-4?unique=9607ff8)
|
Type number: 5626P206 |
72.67 € | |
![[144900] RIEGLER Air tapping 4-way "SYNTESI", BG2, G 3/4, outlet 1x G 3/8, 3x G 1/4](/web/image/product.template/280023/image_128/%5B144900%5D%20RIEGLER%20Air%20tapping%204-way%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%20outlet%201x%20G%203-8%2C%203x%20G%201-4?unique=648198c)
|
Type number: 5625P205 |
72.67 € | |
![[144898] RIEGLER Air tapping 4-way "SYNTESI", BG2, G 3/8, outlet 1x G 3/8, 3x G 1/4](/web/image/product.template/280021/image_128/%5B144898%5D%20RIEGLER%20Air%20tapping%204-way%20%22SYNTESI%22%2C%20BG2%2C%20G%203-8%2C%20outlet%201x%20G%203-8%2C%203x%20G%201-4?unique=051c1d6)
|
Type number: 5623P203 |
62.20 € | |
![[144897] RIEGLER Air tapping 4-way "SYNTESI", BG2, without sockets, outlets 1xG 3/8, 3xG 1/4](/web/image/product.template/280020/image_128/%5B144897%5D%20RIEGLER%20Air%20tapping%204-way%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%20outlets%201xG%203-8%2C%203xG%201-4?unique=ba7fbce)
|
Type number: 5620P200 |
48.74 € | |
![[144893] RIEGLER Air taps 4-way "SYNTESI", BG1, without sockets, outlets 1xG 1/4, 3xG 1/8](/web/image/product.template/280016/image_128/%5B144893%5D%20RIEGLER%20Air%20taps%204-way%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%20outlets%201xG%201-4%2C%203xG%201-8?unique=f572915)
|
Type number: 5610P200 |
31.09 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[144695] RIEGLER Connecting nipple set "SYNTESI", BG 1](/web/image/product.template/279863/image_128/%5B144695%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%201?unique=f87f747)
|
Type number: 9210000 |
2.70 € | |
![[145502] RIEGLER Connecting element 90°, "SYNTESI", BG 1](/web/image/product.template/279258/image_128/%5B145502%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%201?unique=de67692)
|
Type number: 9210009 |
4.08 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=f780728)
|
Type number: 9210006 |
6.47 € | |
![[145507] RIEGLER SYNTESI" fixing screw, BG 1](/web/image/product.template/279263/image_128/%5B145507%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%201?unique=4a7f6b5)
|
Type number: 9210030 |
0.25 € | |

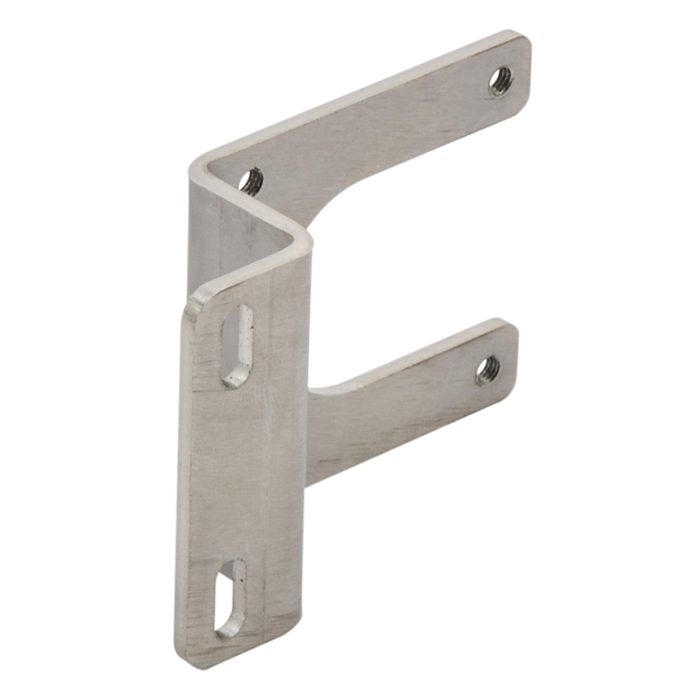

![[145658] RIEGLER SYNTESI" mounting bracket, BG 1, standard and anti-corrosion](/web/image/product.template/279315/image_128/%5B145658%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%201%2C%20standard%20and%20anti-corrosion?unique=37b8db6)
|
