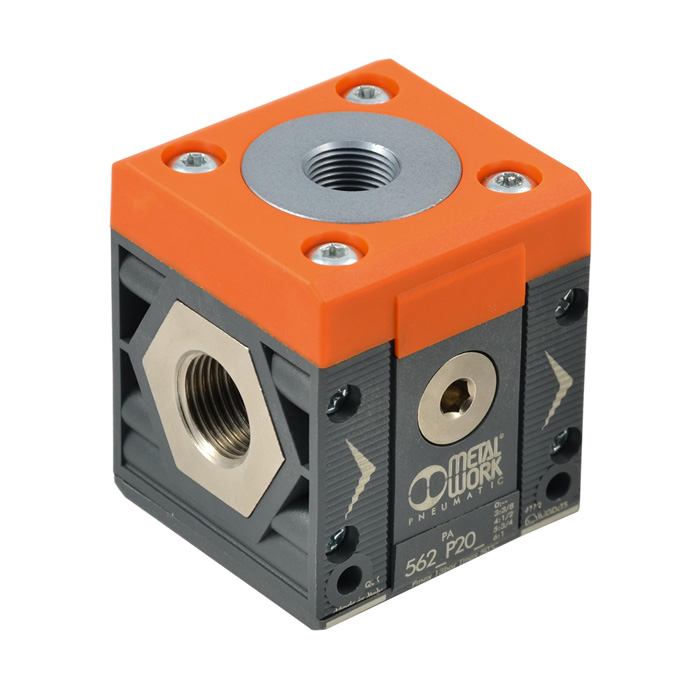

RIEGLER Air tapping 4-way "SYNTESI", BG2, G 1, outlet 1 x G 3/8, 3 x G 1/4
Type number: 5626P206
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Air tapping 4-way "SYNTESI", BG 2, G 1, outlets 1 x G 3/8, 3 x G 1/4, p1 = max. 13 bar, T = -10 ? 50 °C
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 2 |
| Input connection | G 1 |
| Output connection | G 1 |
| A | 60.5 mm |
| B | 81 mm |
| Class name | PLUS |
| A1 | 95.0 mm |
| Flow rate measurement | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Syntesi |
| Flow 1 | 1500 - 4500 l/min |
| Departure | 1 x G 3/8, 3 x G 1/4 |
| F | 42.7 mm |
