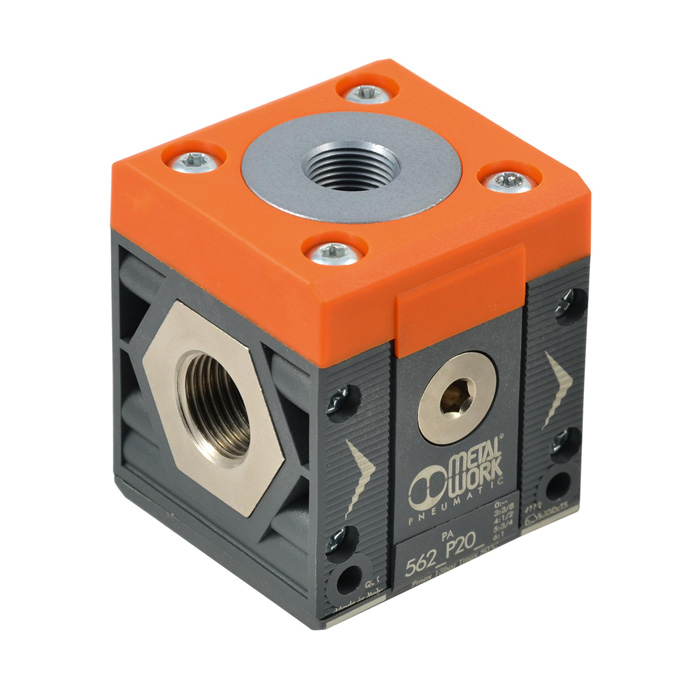

RIEGLER Air taps 4-way "SYNTESI", BG1, without sockets, outlets 1xG 1/4, 3xG 1/8
Type number: 5610P200
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Air taps 4-way "SYNTESI" made of technopolymer, for compressed air treatment - Type 5610P200
The RIEGLER air taps 4-way "SYNTESI", BG1, without sockets, outlets 1xG 1/4, 3xG 1/8 expands maintenance systems modularly with additional functions. The housing is made of technopolymer. The maximum inlet pressure is 15 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Departure | 1 x G 1/4, 3 x G 1/8 |
| BG | 1 |
| Input connection | without socket |
| Output connection | without socket |
| A | 42 mm |
| B | 58 mm |
| Class name | PLUS |
| Flow rate measurement | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Syntesi |
| Flow 1 | 500 - 2000 l/min |
| F | 32.2 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144891] RIEGLER Air tapping 2-way "SYNTESI", BG 1, G 3/8, outlets 2 x G 1/8](/web/image/product.template/280014/image_128/%5B144891%5D%20RIEGLER%20Air%20tapping%202-way%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%20outlets%202%20x%20G%201-8?unique=84df478)
|
Type number: 5610P100 |
8.22 € | |

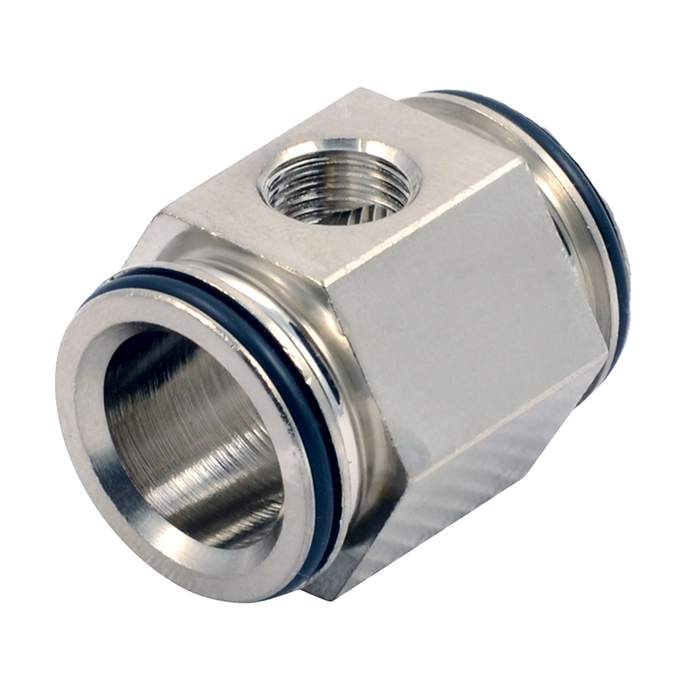

![[144892] RIEGLER Air tapping 2-way "SYNTESI", BG 2, G 1/2, outlets 2 x G 3/8](/web/image/product.template/280015/image_128/%5B144892%5D%20RIEGLER%20Air%20tapping%202-way%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%20outlets%202%20x%20G%203-8?unique=0c02b48)
|
