RIEGLER Air tapping 2-way "SYNTESI", BG 2, G 1/2, outlets 2 x G 3/8
Type number: 5620P100
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Air tapping 2-way "SYNTESI" made of nickel-plated brass, for compressed air treatment - Type 5620P100
The RIEGLER 2-way "SYNTESI" air sampling unit, BG 2, G 1/2, outlets 2 x G 3/8 expands maintenance systems modularly with additional functions. The housing is made of nickel-plated brass. The maximum inlet pressure is 13 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Nickel-plated brass |
| Departure | 2 x G 3/8 |
| BG | 2 |
| Input connection | Syntesi connection nipple |
| Output connection | G 1/2 |
| A | 27 mm |
| Class name | PLUS |
| Flow rate measurement | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Syntesi |
| Flow 1 | 7000 l/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

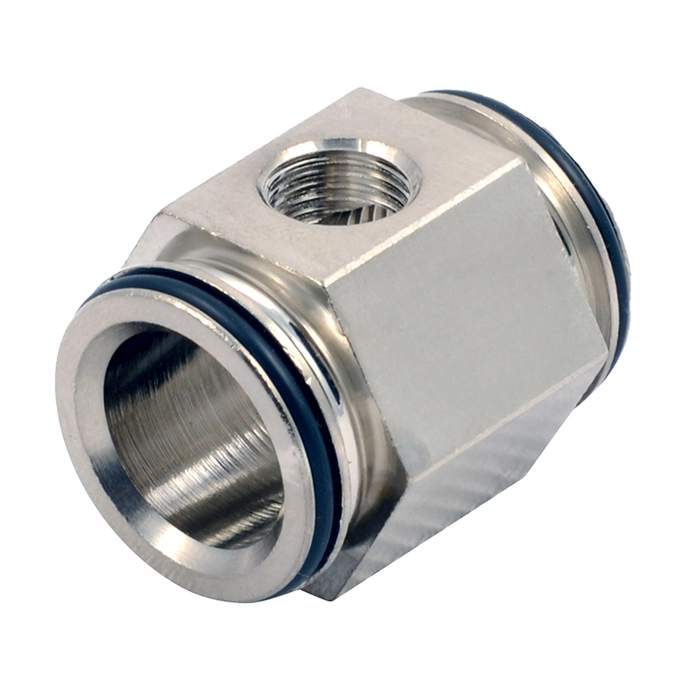

![[144891] RIEGLER Air tapping 2-way "SYNTESI", BG 1, G 3/8, outlets 2 x G 1/8](/web/image/product.template/280014/image_128/%5B144891%5D%20RIEGLER%20Air%20tapping%202-way%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%20outlets%202%20x%20G%201-8?unique=84df478)
|
Type number: 5610P100 |
8.22 € | |
![[144895] RIEGLER Air tapping 4-way "SYNTESI", BG1, G 1/4, outlet 1x G 1/4, 3x G 1/8](/web/image/product.template/280018/image_128/%5B144895%5D%20RIEGLER%20Air%20tapping%204-way%20%22SYNTESI%22%2C%20BG1%2C%20G%201-4%2C%20outlet%201x%20G%201-4%2C%203x%20G%201-8?unique=4d14d48)
|
Type number: 5612P202 |
33.74 € | |
![[144894] RIEGLER Air tapping 4-way "SYNTESI", BG1, G 1/8, outlet 1x G 1/4, 3x G 1/8](/web/image/product.template/280017/image_128/%5B144894%5D%20RIEGLER%20Air%20tapping%204-way%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%20outlet%201x%20G%201-4%2C%203x%20G%201-8?unique=f564a9b)
|
Type number: 5611P201 |
33.74 € | |
![[144896] RIEGLER Air tapping 4-way "SYNTESI", BG1, G 3/8, outlet 1x G 1/4, 3x G 1/8](/web/image/product.template/280019/image_128/%5B144896%5D%20RIEGLER%20Air%20tapping%204-way%20%22SYNTESI%22%2C%20BG1%2C%20G%203-8%2C%20outlet%201x%20G%201-4%2C%203x%20G%201-8?unique=2ef148a)
|
Type number: 5613P203 |
33.74 € | |
![[144899] RIEGLER Air tapping 4-way "SYNTESI", BG2, G 1/2, outlet 1x G 3/8, 3x G 1/4](/web/image/product.template/280022/image_128/%5B144899%5D%20RIEGLER%20Air%20tapping%204-way%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%20outlet%201x%20G%203-8%2C%203x%20G%201-4?unique=1a24a7a)
|
Type number: 5624P204 |
62.20 € | |

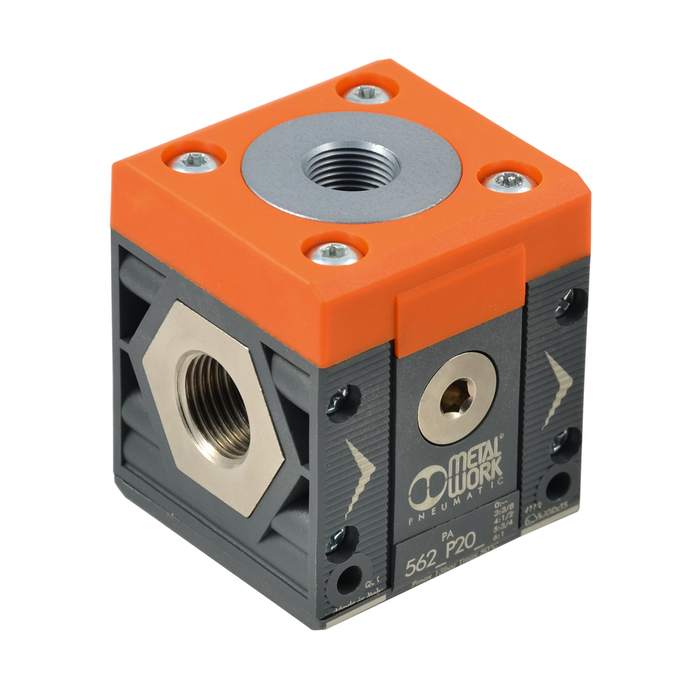

![[144901] RIEGLER Air tapping 4-way "SYNTESI", BG2, G 1, outlet 1 x G 3/8, 3 x G 1/4](/web/image/product.template/280024/image_128/%5B144901%5D%20RIEGLER%20Air%20tapping%204-way%20%22SYNTESI%22%2C%20BG2%2C%20G%201%2C%20outlet%201%20x%20G%203-8%2C%203%20x%20G%201-4?unique=9607ff8)
|
