RIEGLER Capsule pressure gauge, G 1/4 radial bottom, 0 - 400 mbar, Ø 63
Typennummer: 5817-R
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Capsule pressure gauge made of steel, black, for pressure measurement, G 1/4 - Type 5817-R
The RIEGLER capsule pressure gauge, G 1/4 radial bottom, 0 - 400 mbar, Ø 63 measures low pressures precisely using the capsule measuring principle. The housing is made of black steel. The ambient temperature is between -20 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. High-precision measurement in the low pressure range.
Field of application
Typical applications: Fine pressure and differential pressure measurements.
| Housing | Steel, black |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Area of application | for gaseous, dry and non-aggressive media |
| Measuring element | Copper alloy |
| Pointer movement | Brass |
| Diameter | 63 mm |
| Connection | G 1/4 |
| Graduation value in the mbar range | 20 mbar |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Overpressure |
| Measuring range min. mbar | 0 |
| Measuring range max. mbar | 400 |
| Connection position | radial bottom |
| Class name | PLUS |
| Viewing window | Plastic, clipped in |
| Process connection material | Brass |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[199285] RIEGLER Capsule pressure gauge, G 1/4 radial bottom, 0 - 100 mbar, Ø 63](/web/image/product.template/276037/image_128/%5B199285%5D%20RIEGLER%20Capsule%20pressure%20gauge%2C%20G%201-4%20radial%20bottom%2C%200%20-%20100%20mbar%2C%20%C3%98%2063?unique=e1c827f)
|
Typennummer: 5814-R |
65.13 € | |
![[199286] RIEGLER Capsule pressure gauge, G 1/4 radial bottom, 0 - 160 mbar, Ø 63](/web/image/product.template/276038/image_128/%5B199286%5D%20RIEGLER%20Capsule%20pressure%20gauge%2C%20G%201-4%20radial%20bottom%2C%200%20-%20160%20mbar%2C%20%C3%98%2063?unique=28c7d7b)
|
Typennummer: 5815-R |
65.13 € | |
![[199287] RIEGLER Capsule pressure gauge, G 1/4 radial bottom, 0 - 250 mbar, Ø 63](/web/image/product.template/276039/image_128/%5B199287%5D%20RIEGLER%20Capsule%20pressure%20gauge%2C%20G%201-4%20radial%20bottom%2C%200%20-%20250%20mbar%2C%20%C3%98%2063?unique=352938b)
|
Typennummer: 5816-R |
65.13 € | |
![[199283] RIEGLER Capsule pressure gauge, G 1/4 radial bottom, 0 - 40 mbar, Ø 63](/web/image/product.template/276035/image_128/%5B199283%5D%20RIEGLER%20Capsule%20pressure%20gauge%2C%20G%201-4%20radial%20bottom%2C%200%20-%2040%20mbar%2C%20%C3%98%2063?unique=abe5a31)
|
Typennummer: 5812-R |
65.13 € | |

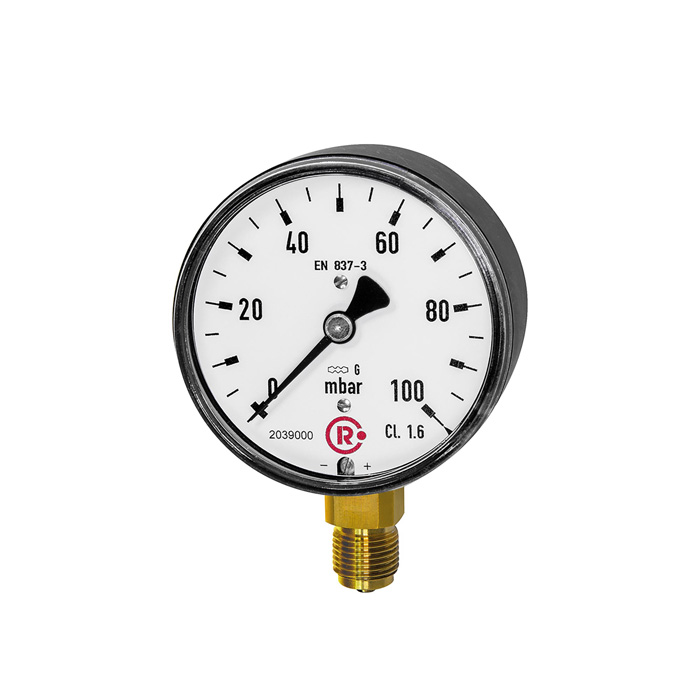

![[199284] RIEGLER Capsule pressure gauge, G 1/4 radial bottom, 0 - 60 mbar, Ø 63](/web/image/product.template/276036/image_128/%5B199284%5D%20RIEGLER%20Capsule%20pressure%20gauge%2C%20G%201-4%20radial%20bottom%2C%200%20-%2060%20mbar%2C%20%C3%98%2063?unique=7d18076)
|
