RIEGLER Capsule pressure gauge, G 1/2 rear centric, 0 - 40 mbar, Ø 100
Typennummer: 6821-R
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Capsule pressure gauge made of stainless steel, for pressure measurement, G 1/2 - Type 6821-R
The RIEGLER capsule pressure gauge, G 1/2 rear centric, 0 - 40 mbar, Ø 100 measures low pressures precisely using the capsule measuring principle. The housing is made of stainless steel. The ambient temperature is between -20 °C and 60 °C. G 1/2 connection thread - suitable for common industry standards. High-precision measurement in the low pressure range.
Field of application
Typical applications: Fine pressure and differential pressure measurements.
| Housing | CrNi steel |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Area of application | for gaseous, dry and non-aggressive media |
| Measuring element | Copper alloy |
| Pointer movement | Brass |
| Diameter | 100 mm |
| Connection | G 1/2 |
| Graduation value in the mbar range | 1 mbar |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Overpressure |
| Measuring range min. mbar | 0 |
| Measuring range max. mbar | 40 |
| Connection position | rear, centric |
| Class name | PLUS |
| Viewing window | Instrument glass |
| Process connection material | Brass |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[199310] RIEGLER Capsule pressure gauge, G 1/2 rear centric, 0 - 100 mbar, Ø 100](/web/image/product.template/276062/image_128/%5B199310%5D%20RIEGLER%20Capsule%20pressure%20gauge%2C%20G%201-2%20rear%20centric%2C%200%20-%20100%20mbar%2C%20%C3%98%20100?unique=095d379)
|
Typennummer: 6823-R |
98.16 € | |

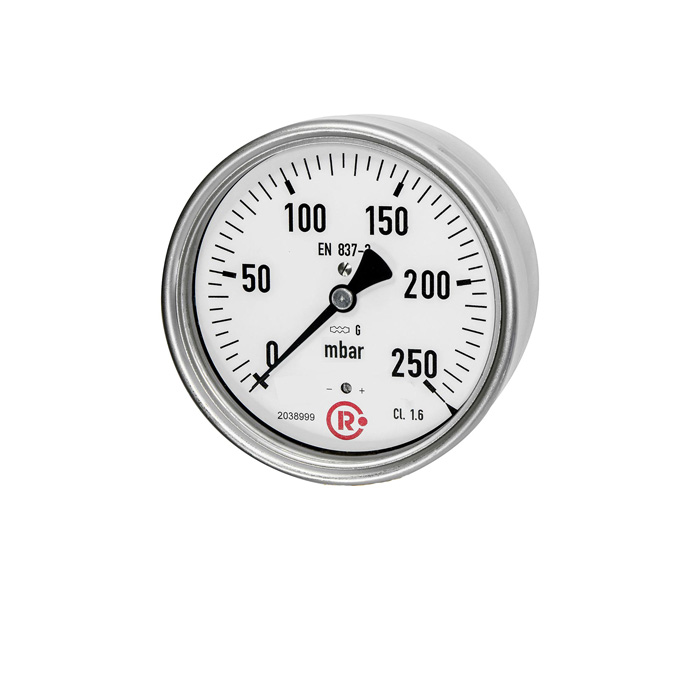

![[199311] RIEGLER Capsule pressure gauge, G 1/2 rear centric, 0 - 160 mbar, Ø 100](/web/image/product.template/276063/image_128/%5B199311%5D%20RIEGLER%20Capsule%20pressure%20gauge%2C%20G%201-2%20rear%20centric%2C%200%20-%20160%20mbar%2C%20%C3%98%20100?unique=3027cea)
|
