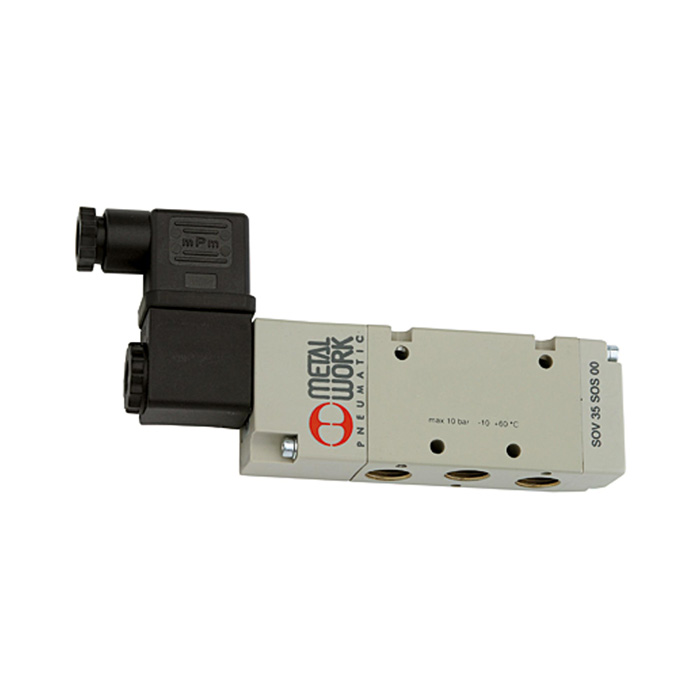

RIEGLER 5/2-way valve, electropneumatic, monostable, G 1/8, 24 V AC
Type number: 39.804
EAN: 4047322773706
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
145855EAN :
4047322773706Category :
Valves Electropneumatically OperatedWeight :
0.20 kg5/2-way valve, electropneumatic, monostable, G 1/8, 24 V AC, 50/60 Hz, p = 2.5 ... 10 bar, aluminum
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Manual override | resting |
| DN | 5 |
| Actuation | monostable |
| Symbol | 35 |
| Connection | G 1/8 |
| Flow_1 | 400 Nl/min |
| Flow_2 | 550 Nl/min |
| Class name | PLUS |
| Function | 45327 |
| Tension | 24 V, 50/60 Hz |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
